FP16: Inputs and outputs

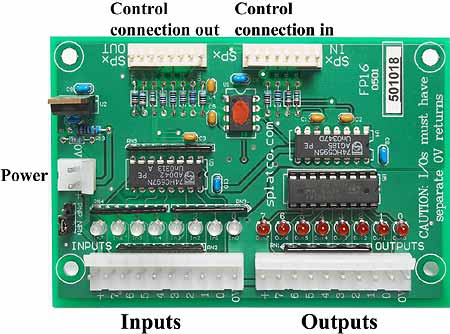

The picture above shows the locations of the 5 connectors on the FP16 board. These are:

Inputs

This 10-pin connector provides the connections for your input devices.

Outputs

This 10-pin connector provides the connections for your output devices.

Control connection in (SPx IN)

This 8-pin connector is the control input from the SPLat controller (host) board. It must be connected via a suitable cable assembly to the SPx connector on the host.

Control connection out (SPx OUT)

This 8-pin connector can be connected to another SPx board's control input (SPx IN) connector. In this way several boards can be daisychained together.

PWR

Power is supplied to the board via this connector.
