MBIO16: Inputs and outputs

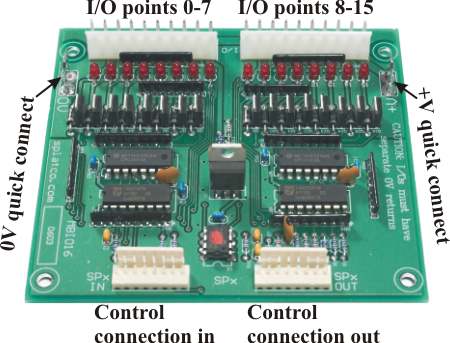

The picture above shows the locations of the connectors on the MBIO16 board. These are:

I/O points 0-7 and 8-15

These two 10-pin connectors provide the connections to your input and output devices.

Control connection in (SPx IN)

This 8-pin connector is the control input from the SPLat controller (host) board. It must be connected via a suitable cable assembly to the SPx connector on the host.

Control connection out (SPx OUT)

This 8-pin connector can be connected to another SPx board's control input (SPx IN) connector. In this way several boards can be daisychained together.

+V and 0V quick connects

Power is supplied to the board via these terminals. More information
