# ColourWheelEvent(ev:EventHandler) hash function

Please note the Android and Windows implementations of SimpleHMI have been deprecated.  Both were little used and have been superseded by the HMI series of SPLat Controllers.

Valid for use with hash command: HMI. Can also be spelled ColorWheelEvent.

Implemented on the following platforms: Android

Interactive Colour selector for RGB LED controls.

Displays a colour wheel image (colour picker) at the top of the screen, scaled to fill the width. Raises events (GoSub EventHandler) as the Enduser moves the touch across the wheel. The non-coloured parts of the colour wheel image are transparent, so the background colour will show through. However, if the touch wanders into those areas the function returns black. The small dots provide pure R, G, B and white colours.

In EventHandler you can retrieve the RGB colour values (range 0-255) by 3 successive COMRx_fGetNum 255 instructions.

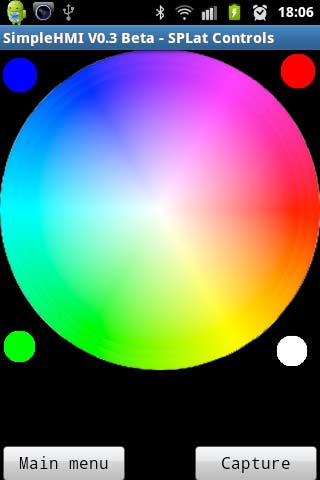

The following screen capture shows the colour wheel. The buttons at the bottom are separately generated by the target app.


Example: Here is the code snippet from the target app.:

;------ Colour wheel ------------------
evWheel:
;Event called from top level menu
  # HMI Reset() Cls() HideAllButtons()
  # HMI ColourWheel(evColourWheel)
  # HMI ButtonEvent(, 0.95, 0.6, 0.1, 0.4, "Capture", evSaveMood)
          GoSub           MakeBackButton
          Return    ;New colour input from the colour wheel

evColourWheel:
          LaunchTask      tskCW
          COMRx_fGetNum   255
          fix
          Store           bTriRed		;Byte variable, defined elsewhere
          COMRx_fGetNum   255
          fix
          Store           bTriGreen
          COMRx_fGetNum   255
          fix
          Store           bTriBlue
          GoSub           UpdateTriLED   ;Updates the RGB LED
          Return

tskCW:  ;(Diagnostic) Flash a front panel LED on MS120
          On              11
          Pause           10
          Off             11
          KillTask

MakeBackButton:
          # HMI ButtonEvent(, 0.95, 0.0, 0.1, 0.4, "Main menu", evTopMenu)
          Return
