HMI700 - Controller with 7" touch screen

This is hot off the production line, SPLat's new HMI700. It's just like the HMI430 but packs 7" of touchscreen goodness. Resolution is 800x480 and it's got a proper RS232 port as well as USB for programming, RS485, TTL serial, etc etc.

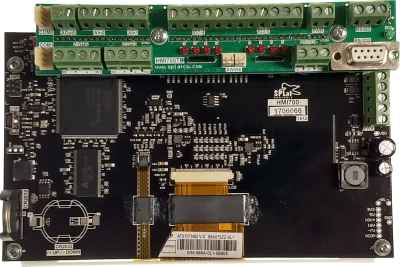

Here's a back view showing the connectors and battery holder for the real time clock.

The image on the left shows the HMI700 being used as the user interface for a water immersion treadmill.

Features

The HMI700 includes all of these features as standard:

• 8 x bi-direction digital pins (they can be any combination of inputs or outputs). As outputs, each can sink up to 500mA.
• 2 x analog inputs, each can be configured as either:Temperature, 0 - 20mA, 4 - 20mA, 0 - 10V, 0 - 3.3V.
• 1 x RS485 port, may be used for: MODBUS, Xwire expansion bus, or your own protocol.
• 2 x serial ports, both appear as TTL, one also appears as RS232.
• 300kHz(min) frequency counting input
• 100 year Real Time Clock with coin cell holder on-board. (bring your own battery).
• 7" 800 x 480 resistive touch LCD (hence it works with gloves).
• 1 x 0 - 10V analog output.
• Dimmable backlight.
• Beeper for making noise.
• USB interface for programming, font and image upload.
• Works with all our Xwire expansion boards.

Comparisons

This photo shows the size difference between the HMI430 & HMI700.

It also shows the difference in quality of displays as the HMI700 is clearly showing a whiter and brighter image.

Reference

• Firmware Update
• USB Driver
• 3D Model
• 3D Model including Bezel
• Dimensions

HMI700OEM

Controller, 7" Colour Touchscreen with backlight, 8 BIO @ 500mA each (2.5A total max), 2 analogue in each temperature/current/voltage selectable, 1 analogue out 0 - 10V, 2 TTL serial, RS232 Serial, 1 RS485 serial, Xwire, RTC, USB

• 1 - 4AUD269exGSTUSD≈204
• 5 - 9AUD261exGSTUSD≈198
• 10 - 24AUD254exGSTUSD≈193

Shipping weight:
355g / 12.5oz

HMI700 TB

Ease your field wiring termination woes with this screw terminal board. This board plugs in and is secured with 2 screws.

• 1+AUD28exGSTUSD≈21

Shipping weight:
80g / 2.8oz

HMI700DK

HMI700 + TerminalBoard + USB Cable. Controller, 7" Colour Touchscreen with backlight, 8 BIO @ 500mA each (2.5A total max), 2 analogue in each temperature/current/voltage selectable, 1 analogue out 0 - 10V, 2 TTL serial, 1 RS485 serial, Xwire, RTC, USB

• 1+AUD299exGSTUSD≈227

Shipping weight:
510g / 18oz

USBA-MINIB

USB A to MiniB, 1 metre (appearance may vary)

• 1+AUD7exGSTUSD≈5.25

Shipping weight:
35g / 1.2oz

HMI700PNR

HMI700 Post nuke repair. SPLat will either repair or replace the controller and LCD if they have been damaged.

• 1+AUD135exGSTUSD≈103

Shipping weight:
355g / 12.5oz

7" Colour LCD

Replacement 7" colour touch screen LCD.

• 1+AUD46exGSTUSD≈35

Shipping weight:
180g / 6.3oz

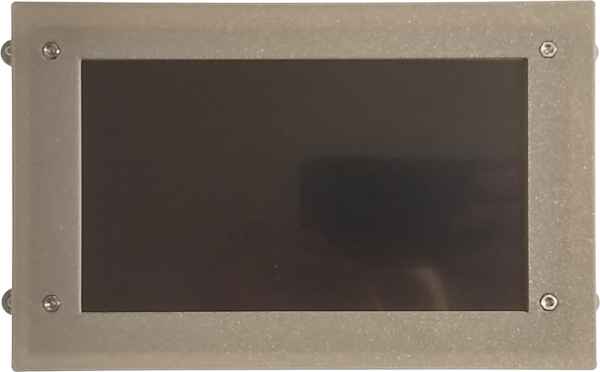

HMI700PBEZ

HMI700 panel bezel, with 4 mounting wings, 8 x 12mm screws & 8 x nuts. This is 3D printed so the finish is good but not perfect.

• 1+AUD35exGSTUSD≈27

Shipping weight:
0g / 0oz
