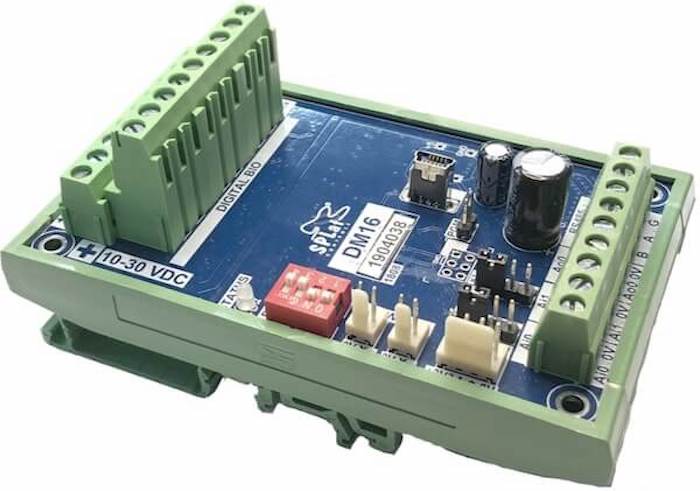

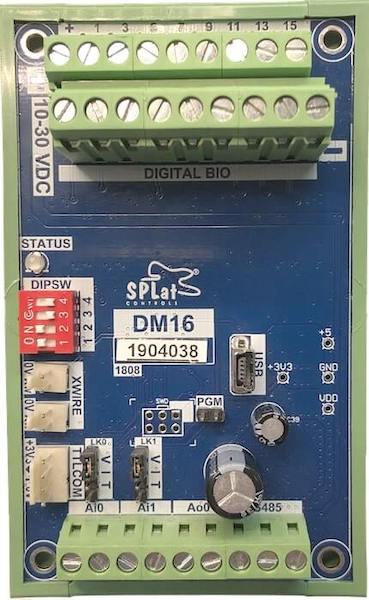

DM16

The SPLat DIN Family of controllers are an ideal solution for any job that needs a cheap programmable PLC inside a cabinet. Each product in the DIN Family is a fully programmable controller, so it can either be used by itself or wired up with other family members to get more I/O.

The DM16 is a cheap and quick way to 16 digital I/O lines into a cabinet. But wait, there's more as this board also has 2 on-board analogue inputs, each fully configurable for current (0 - 20mA), voltage (0 - 10V) or temperature (using a thermistor).

Use this controller alone, or join it to the DC216 with a display or DR8 with 8 relays to get even more I/O capability.

Programming is done via a standard USB Mini-B cable and the IDE is completely free.

The DM16 has the following features:

Fully programmable SPLat controller with all the latest, relevant SPLat features.
Network it with 2 wires to other DIN Family members for expanded I/O
8 --> 30 VDC operation, ~70mA maximum at 24 VDC
16 x digital I/O lines, 2 Amps each as outputs (Max 16 Amps total ground current)
2 x analogue inputs (voltage or current or temperature)
USB programming port (mini B)
1 programmable bi-colour LED (red/green)
RS485 interface. Use for MODBUS, Xwire or your own protocol
TTL Xwire interface
TTL serial interface
Configurable DIP switches
Connects to any SPLat controller with latest Xwire drivers
Dimensions: 68mm x 118mm (2.7" x 4.65") in DIN holder
Has mounting holes for DIN-less mounting

USB

To program this controller you will need this USB driver:

USB driver

Once downloaded, unzip, right-click "splat_serial.inf" and choose Install.

Firmware

The firmware download page has the tools and instructions you need for updating your controller's firmware. The latest firmware is also available here:

Download DM16 V4.4

The firmware revision history is available here .

DM16

DIN Family: 16 x I/O, 2 x Analogue In (Temperature, 0 - 20mA, 0 - 10V), TTL Serial, RS485. Includes DIN mounting kit.

1 - 4AUD125exGSTUSD≈95
5 - 9AUD122exGSTUSD≈93
10 - 24AUD118exGSTUSD≈90

Shipping weight:
125g / 4.4oz

DM16 No DIN

DIN Family: 16 x I/O, 2 x Analogue In (Temperature, 0 - 20mA, 0 - 10V), TTL Serial, RS485.

1 - 4AUD119exGSTUSD≈90
5 - 9AUD116exGSTUSD≈88
10 - 24AUD112exGSTUSD≈85

Shipping weight:
80g / 2.8oz

DIN Family: DM16 = DIN Controller with x16 I/O
