DTS2-RTD / DTS2-TC

The SPLat DIN Family of controllers are an ideal solution for any job that needs a cheap programmable PLC inside a cabinet. Each product in the DIN Family is a fully programmable controller, so it can either be used by itself or wired up with other family members to get more I/O.

Use this controller alone, or join it to the DT16 with 16 I/Os, DM16 with 16 I/Os, DR8 with 8 relays, DR204A with 8 relays and mixed I/Os and/or DA8 with mixed I/Os to get even more I/O capability.

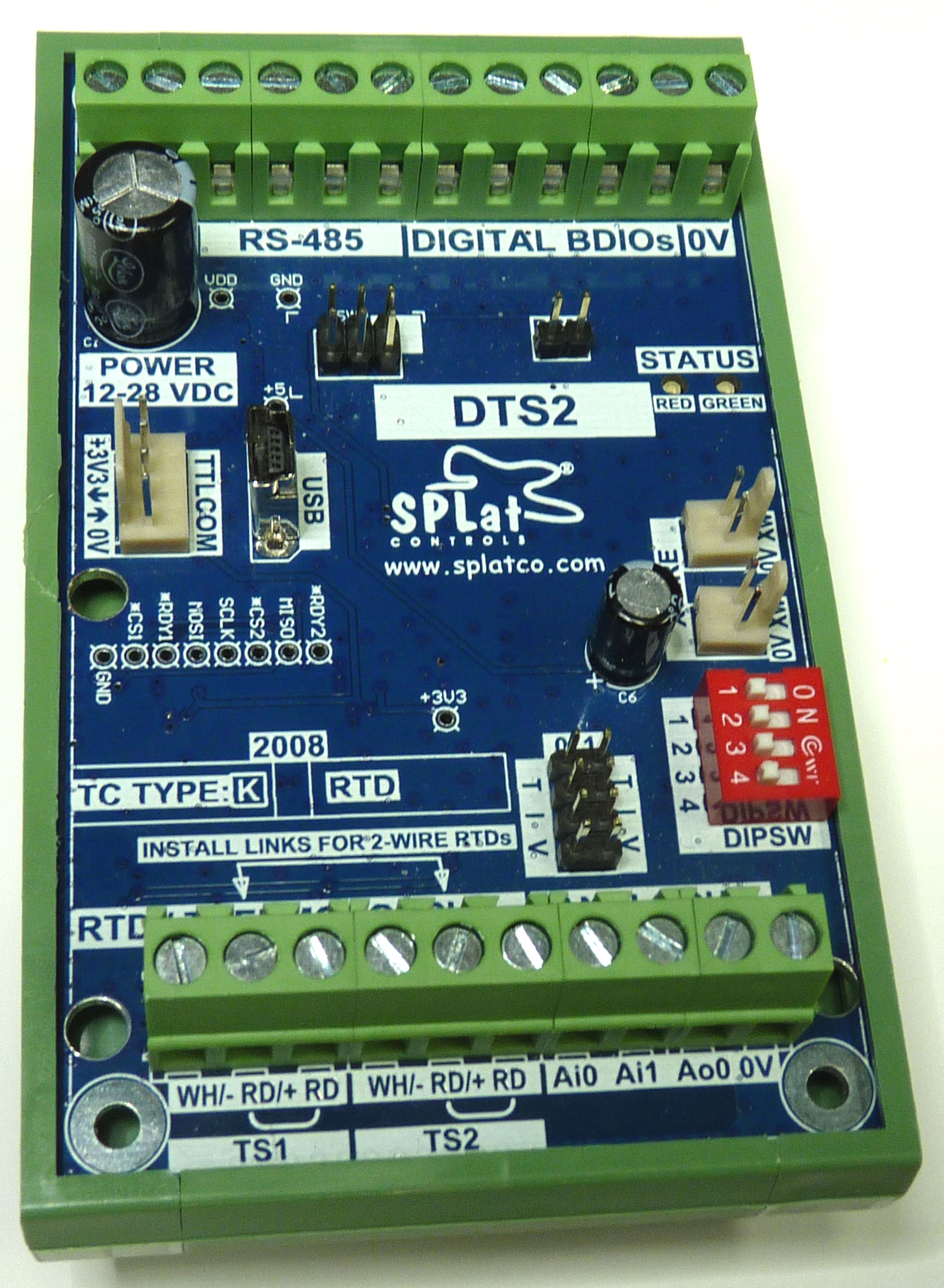

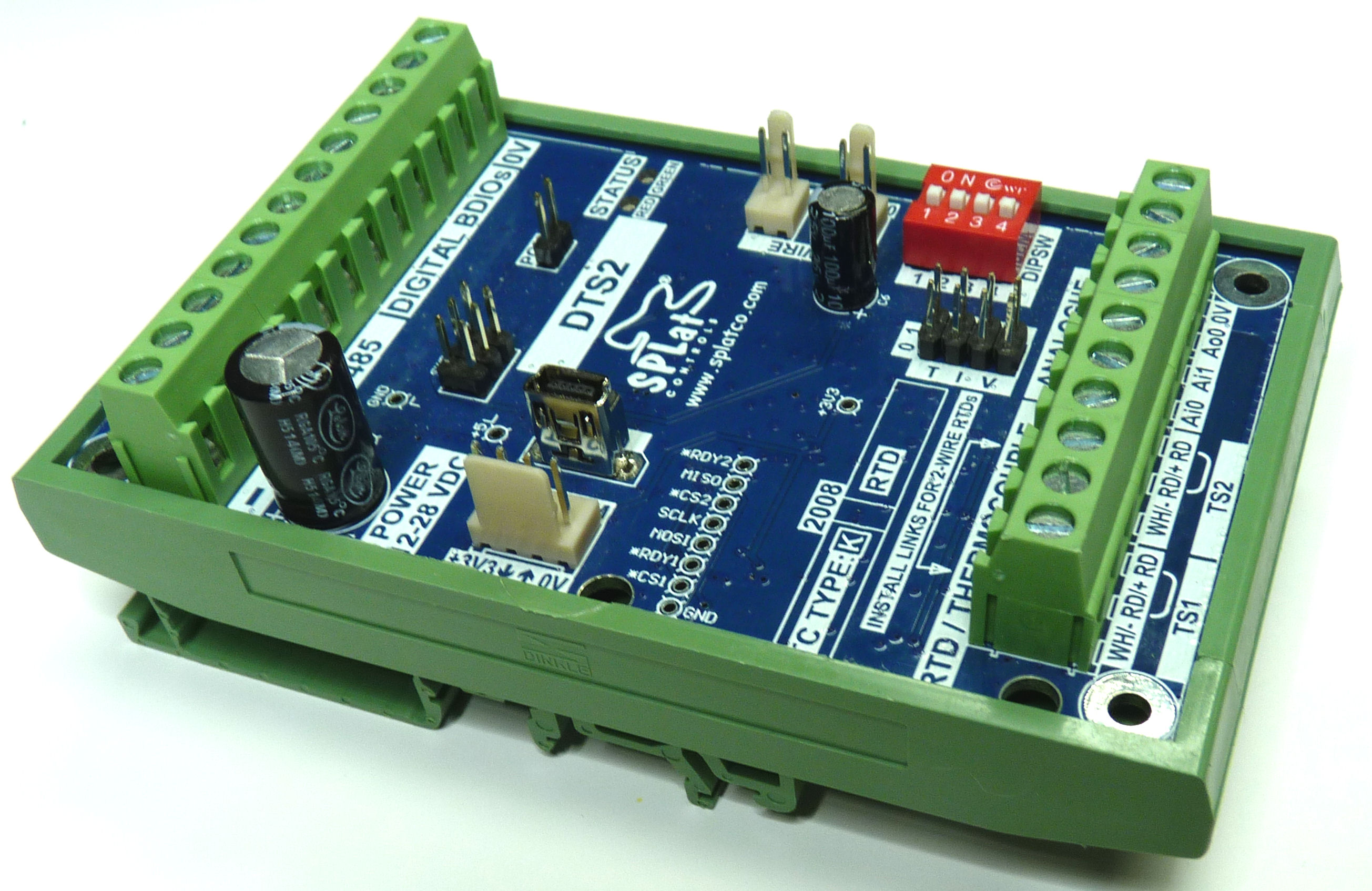

The DTS2 is an easy and quick way to add accurate temperature measurements together with a rich mix of digital and analogue IOs into a cabinet. With two Resistance Temperature Detector (RTD) inputs for DTS2-RTD or two thermocouple inputs for DTS2-TC variants, as well as two Temperature/Current/Voltage selectable analogue inputs, one 0-10V analogue input, five bi-directional DIOs and a fully programmable controller, this may be all you need to get the job done.

The DTS2-RTD has two input channels for connecting RTD sensors (2-wire or 3-wire). Standard production controllers accept PT100 RTDs; a special order is required for PT1000 RTDs (p/n DTS2-RTD1K).

The DTS2-TC has two input channels for connecting thermocouple sensors. Standard production controllers accept type K thermocouples; a special order is required for J-, N-, T-, S-, R- or E-type thermocouples (p/n DTS2-TCJ, etc.).

The DTS2 has the following common / additional features:

• Fully programmable SPLat controller with all the latest, relevant SPLat features.
• Network it with 2 wires to other DIN Family members for expanded I/O
• 8 --> 24 VDC operation, ~70mA maximum at 24 VDC
• 2 x analogue inputs (voltage or current or temperature)
• 1 x analogue ouput, 0 - 10V
• 5 x digital I/O lines, 1000mA each as outputs
• RS485 interface. Use for MODBUS, Xwire or your own protocol
• USB programming port (mini B)
• TTL Xwire interface
• TTL serial interface
• Configurable DIP switches (x4)
• Connects to any SPLat controller with latest Xwire drivers
• Dimensions: 68mm x 118mm (2.7" x 4.65") in DIN holder
• Has mounting holes for DIN-less mounting

USB

To program this controller you will need this USB driver:

USB driver

Once downloaded, unzip, right-click "splat_serial.inf" and choose Install.

Firmware

The firmware download page has the tools and instructions you need for updating your controller's firmware. The latest firmware is also available here:

Download DTS2 V4.10

DTS2-RTD

DIN Family: 2 x RTD100 In, 5 x I/O (1000mA sink), 2 x Analogue In (Temperature, 0 - 20mA, 0 - 10V), 1 x Analogue Out (0 - 10V), TTL Serial, RS485. Includes DIN mounting kit.

• 1 - 4AUD151exGSTUSD≈115
• 5 - 9AUD147exGSTUSD≈112
• 10 - 24AUD144exGSTUSD≈110

Shipping weight:
125g / 4.4oz

DTS2-RTD No DIN

DIN Family: 2 x RTD100 In, 5 x I/O (1000mA sink), 2 x Analogue In (Temperature, 0 - 20mA, 0 - 10V), 1 x Analogue Out (0 - 10V), TTL Serial, RS485. Without DIN mounting kit.

• 1 - 4AUD145exGSTUSD≈110
• 5 - 9AUD141exGSTUSD≈107
• 10 - 24AUD138exGSTUSD≈105

Shipping weight:
80g / 2.8oz

DTS2-TC

DIN Family: 2 x TC-K In, 5 x I/O (1000mA sink), 2 x Analogue In (Temperature, 0 - 20mA, 0 - 10V), 1 x Analogue Out (0 - 10V), TTL Serial, RS485. Includes DIN mounting kit.

• 1 - 4AUD146exGSTUSD≈111
• 5 - 9AUD142exGSTUSD≈108
• 10 - 24AUD138exGSTUSD≈105

Shipping weight:
125g / 4.4oz

DTS2-TC No DIN

DIN Family: 2 x TC-K In, 5 x I/O (1000mA sink), 2 x Analogue In (Temperature, 0 - 20mA, 0 - 10V), 1 x Analogue Out (0 - 10V), TTL Serial, RS485. Without DIN mounting kit.

• 1 - 4AUD140exGSTUSD≈106
• 5 - 9AUD136exGSTUSD≈103
• 10 - 24AUD133exGSTUSD≈101

Shipping weight:
80g / 2.8oz
